 01.Power Supply >> CCTV Power Supply Box >> Integrated Distribution Box PK1209-20A

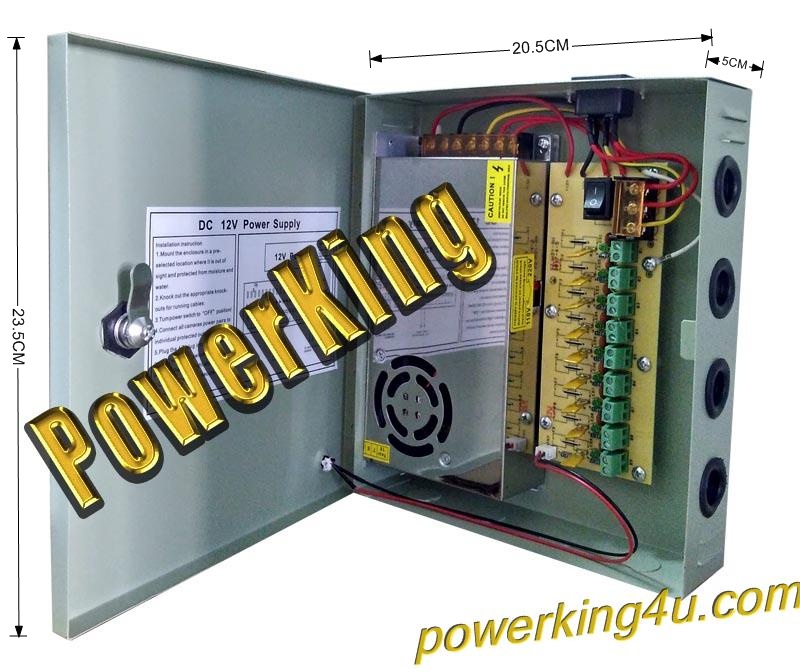

  Integrated Distribution Box PK1209-20A
Product Name:Integrated Distribution Box PK1209-20A
Product S/N:122316345318
Specification:DC 12V 20A 240W PTC smart Fuse
Product Feature:CE&RoHS,PTC fuse,integrated power distribution unit
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description
  Description for PK1209-20A:
  Input Voltage:AC 100-240
  Input Voltage:Frequency 50/60Hz
  Output Voltage:DC 12V
  Total Output Current:20A
  Total Outputs:9
  Fuse Type:PTC (Resetable)
  Fuse Rating:2.2A
  Mains power with surge protection
  Internal ON/OFF switch
  Metal case with front door keylock
 New Technology,lower temperature!


  Certificate:CE &RoHS

  General Protection:each output has individual PTC fuse and LED indicator, when problem  occurs, only affect the individual output, other outputs still working.
Circuit Short Protection:when short condition occurs, individual PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High Voltage Protection:when high voltage occurs, the surge protection  will be hit through to protect the connected device.
  Over Current protection:when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
warranty:1 year warranty.
  CCTV Camera, PTZ, IR Illuminators, Video Process Equipment, etc.
Access Control  Reader, Lock, Panel, etc.
  Cabinet Dimension:24.5 x 21 x 4.7(cm)
  Packing Dimension:25 x 21.4 x 5(cm)
  Net Weight:2.7kg
Output Group
Output Current
Input Voltage
85 – 265 VAC
Rated Input Voltage
100 – 240 VAC
Input Frequency
50 – 60 Hz
Output Voltage
12V DC
Output Voltage Adjustment Range
10.8 – 13.5V
Max Single Output Current
Average Full-load Current
Ripple Voltage
Input and Output
AC 3.0 KV, 1min, 10 mA Test
Input and Shell
AC 2.5KV, 1 min, 10 mA Test
Output and Shell
DC 500V, 1 min, 10 mA Test
Function of protect
1、Output short protection
2、Output over current protection 3、Output over voltage protection
Safety Standards
EMC Standards
GB9254、EN55022 Class B FCC
Thermal Methods
Natural air convection, metal box conducts heat
Radiation Protection
Metal box shields electromagnetic radiation, Prevents interference
Operation temperature
-20℃ ~ +45℃
Product Dimension
275(L) X 270(W) X47(H) mm
Packing Dimension
280(L) X 275(W) X 50(H) mm
●     Use of efficient, environmental protection switching power supply
●     Optimization of the shape and structure to facilitate the construction systems
●     Small ripple-video output signal more stable, clearer images
●     Splitter output-by-pass failure to protect other equipment to work
●     Power protection-Output over-voltage protection, over-current
Protection, short circuit protection
●     Material of PCB uses 2 ounce brass and fiberglass plate, with
highly mechanical, anti-inflammation (UL94-V0 grade), it's
best grade in stability, sticking, sobbing, hot decomposition and
expansion, keeps whole product working in best condition.
Hits:70565  AddTime:2019-1-16 [Print] [Close]
