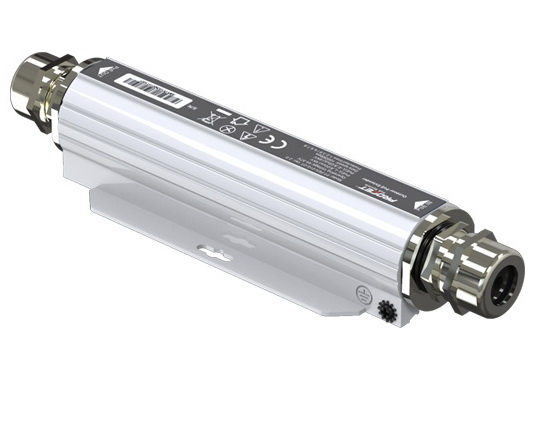

  PK-PEX-01G-OT  Outdoor PoE extender
Product Name:PK-PEX-01G-OT Outdoor PoE extender
Product S/N:21516311536
Specification:Outdoor PoE extender
Product Feature:Outdoor PoE extender
Product Class:02.POE(Power Over Ethernet)
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

Product Features
1. Single-port PoE extender
PK-PEX-01G-OT is a single-port PoE extender with Aluminum alloy shell which is waterproof, dustproof. It delivers 55Vdc, 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection.
2. Supports terminal equipments with IEEE802.3af/at, PoE++ standard
It supports 10/100/1000Mbps of date speed. It works with 60W PoE PDs such as wireless APs, base stations, network cameras and other high power Ethernet terminals.
3. Designed for outdoor use
It works with input voltage of 44-57Vdc from PoE injector and operates under -40℃ to 65℃. On the input side, it connects to PoE injector or PoE switch, on the output side it connects to PDs.

Instruction
PK-PEX-01G-OT is a single-port PoE extender with Aluminum alloy shell which is waterproof, dustproof. It delivers 55Vdc, 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of date speed. It works with 60W PoE PDs such as wireless APs, base stations, network cameras and other high power Ethernet terminals. It supports terminal equipments with IEEE802.3af/at, PoE++ standard.

PK-PEX-01G-OT is designed for outdoor use. It works with input voltage of 44-57Vdc from PoE injector and operates under -40℃ to 65℃. On the input side, it connects to PoE injector or PoE switch, on the output side it connects to PDs. The total effective distance from PoE injector to PD is 200meters by CAT5e/CAT6 cables without local power. It can work longer to 400 meters with adding 3 PoE extenders. It is easy to install with 2 mounting holes and is specially suitable for working in complex power situations.

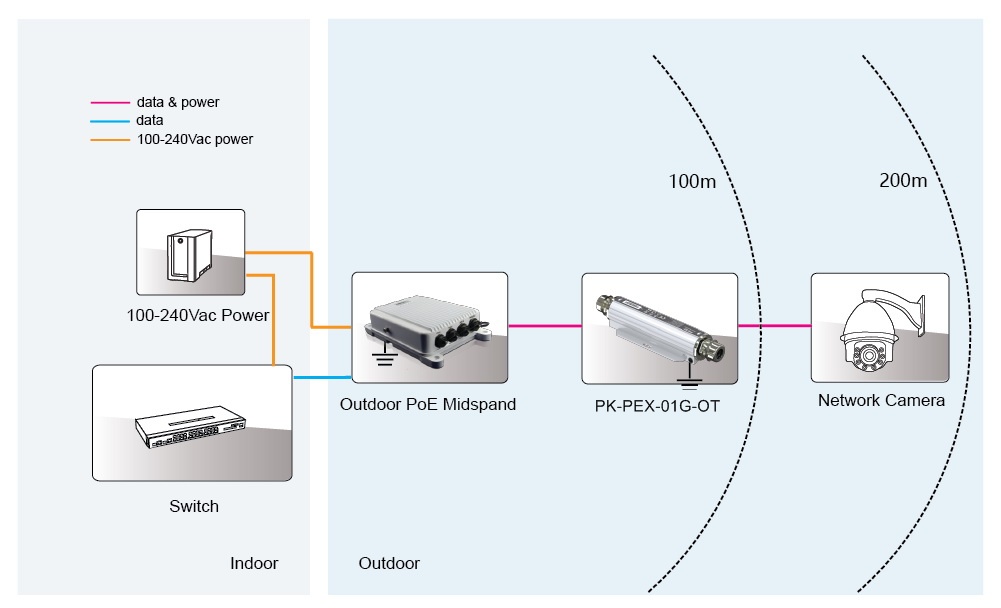

Schematic Diagram

Specification
Standard
- IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-Tx Fast Ethernet
- IEEE802.3ab 1000Base-T Gigabit Ethernet
- Support equipments with IEEE802.3af/at,PoE++
- RoHS Compliance
- WEEE Compliance

Input & Output
- Operating Voltage :44-57Vdc(Max 60Vdc)
- Maximum Operating DC Current :1.1A for 4 pairs,
                                                        maximum 60W
- Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
- Data Speed: 10/100/1000Mbps

Working Environment
- Operating Temperature: -40℃ to 65℃
- Operating Humidity: 20% to 80%, non-condensation
- Storage Temperature: -40℃ to 85℃
- Storage Humidity: 10% to 95%, non-condensation
- Operating Altitude: up to 5000 meters

PoE Surge Protection
- Protected line: 1,2,3,4,5,6,7,8
- Common mode surge protection(10/700us): 6KV
- Differential mode surge protection (10/700us): 1.5KV

Mechanical Characteristics
- Case: Alumininum alloy
- Color: White
- Mounting: Wall-mounted
- IP Rated: IP67
- Size: 209mm X 53mm X 37.5mm
- Weight: 410g

Safety Approvals
- CE

EMI
- FCC CFR47 Part 15, EN55024, EN55032

EMS
- IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)
- IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
- IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV
- IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM
- IEC61000-4-6(CS) 10V(150kHz~80MHz)

Immunity
- IEC60068-2-6(Vibration)
- IEC60068-2-27(Impact)
- IEC60068-2-32(Free Fall)
