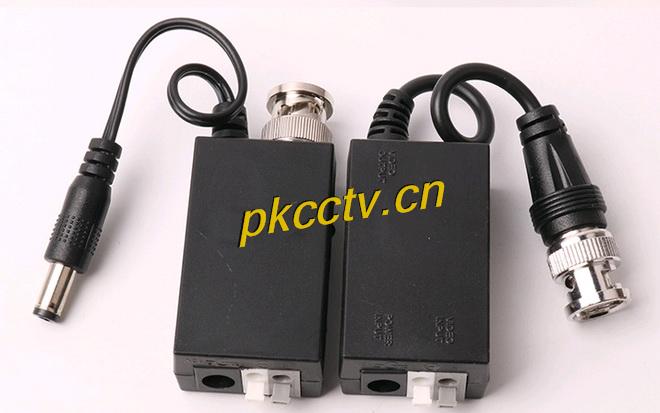

Single channel passive video transceiver
Transmitting real-time AHD/CVI 1080P/720P video
No power required
Exceptional interference rejection and built-in protection setting
Convenient wiring installation, higher cable utilization rate and lower composite wiring cost
Compact size
| Video |
AHD/CVI 1080P & 720P real-time |
| Frequency |
DC To 8MHz |
| Impedance |
Coax BNC: 75Ω, UTP: 100Ω |
| CMRR |
60dB typ |
| Attenuation |
0.3dB typ |
| Temperature |
Working temp: -10°C-+50°C
Storage temp: -30°C-+70°C |
| Humidity |
0- -95%RH |
| Wire Type |
UTP CAT5, 24-16AWG |
| Impedance |
9Ω(100M) |
| Power |
Active(DC) |
| UTP Port |
Terminal Block |
| Dimensions(mm) |
50*16*16 |
| Weight(g) |
23 |
