 01.Power Supply >> CCTV Adaptor >> adaptor DC12-24V96W

  adaptor DC12-24V96W
Product Name:adaptor DC12-24V96W
Product S/N:1129162642
Specification:DC12-24V96W
Product Feature:multi level voltage adjustable power adaptor
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

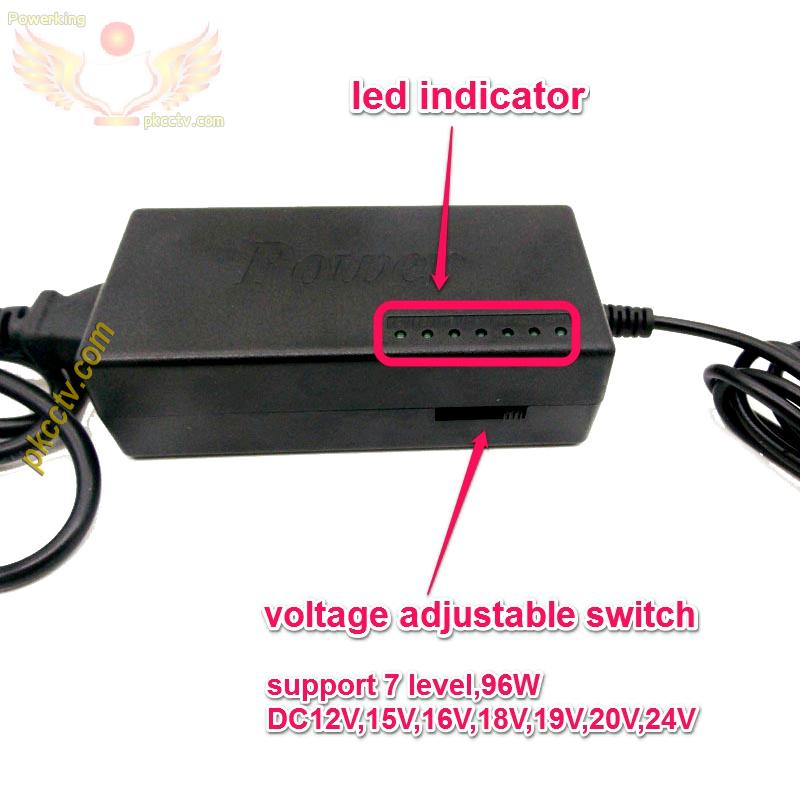

CCTV power adaptor:DC12-24V96W
Input:AC100-240V,
multi level voltage adjustable power adaptor
Output:DC12V,15V,16V,18V,19V,20V,24V.
wall mount  adaptor.
overload protection
shortcircuilt protection
voltage regulated

ITEM

DC12-24V96W

Description

multi level voltage adjustable power adaptor

Input

Input AC plug

Optional

Input voltage

AC100-240V50/60Hz

Output

Output Connect ing plug :

5.5*2.1mm DC

Output voltage:

DC12V,15V,16V,18V,19V,20V,24V

Output electric power:

96W

R ipple wave :

(mVp-p): <1%

Linear modulate:

±0.5%max

Temperature coefficient:

±0.02%/℃

start time

≤1s(240V output,1o=100%)

guard time:

≥20ms(240V input,1o=100%)

Protection

override protection :

115% ~ 150% kvA , automatic recovery

overvoltage protection

30% ~ 150% V AC ,No recovery

short-circuit protection

1 channel : automatic recovery

Environment

working temperature :

0℃ ~ 40℃,10% ~ 90%RH

Store temperature :

-20℃ ~ 85℃,10% ~ 90%RH

ASL :

<3000m

Cooling:

Environment

Size

Size:

X X mm

weight:

G
