 01.Power Supply >> CCTV Adaptor >> adaptor PKC12V5A4channel

  adaptor PKC12V5A4channel
Product Name:adaptor PKC12V5A4channel
Product S/N:112916385517
Specification:12V 5A 4channel,UL,CE and RoHS certificates
Product Feature:adaptors DC 12V 5A 60W 4channel,CE RoHS
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!

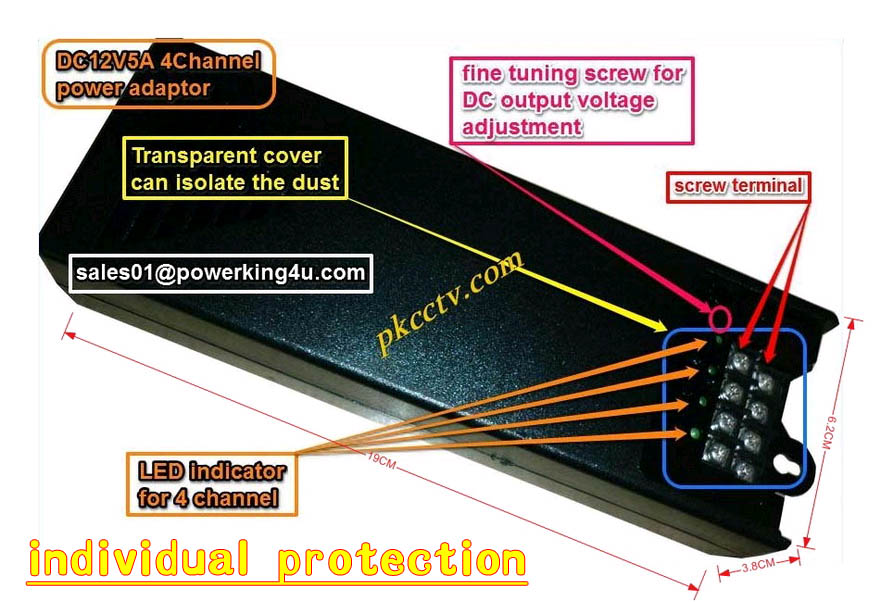

    Product Description

Input:AC100-240V,
Output:DC12V 5A 4 Channel.
Pruduct dimension:15*5*3
Paper box dimension:18*6.5*6.5
Gross Weight:0.6kg

inline desktop adaptor.
Cetificates:UL,CE,RoHS,complies with WEEE.
Power supplies are VOLTAGE REGULATED and marked with CE & ROHS and WEEE labels.

ITEM

PKC12V5A-4CH

Description

12 V 5A DC  4 Channel

Input

Input AC plug

Optional

Input voltage

AC100-240V50/60Hz

Output

Output Connect ing plug :

5.5*2.1mm DC

Output voltage:

12V DC

Output electric current:

5000MA

R ipple wave :

(mVp-p): <1%

Linear modulate:

±0.5%max

Temperature coefficient:

±0.02%/℃

start time

≤1s(240V output,1o=100%)

guard time:

≥20ms(240V input,1o=100%)

Protection

override protection :

115% ~ 150% kvA , automatic recovery

overvoltage protection

30% ~ 150% V AC ,No recovery

short-circuit protection

1 channel : automatic recovery

Environment

working temperature :

0℃ ~ 40℃,10% ~ 90%RH

Store temperature :

-20℃ ~ 85℃,10% ~ 90%RH

ASL :

<3000m

Cooling:

Environment

Size

Size:

X X mm

weight:

G

Certificates:UL,CE,RoHS CE(EUC,EMC,LVD) EN 55022:2006+A1:2007
EN 61000-3-2:2006
EN 61000-3-3:2008
EN 55024:1998+A2:2003
EN 60950-1:2006
RoHS(EUT 2002/95/EC) EPA3050B:1996,EN1122:2001
EPA3052:1996,EPA3060A
EPA7196,EPA3540C,EPA8270C
