  CCTV backup power supply PK12V3AB
Product Name:CCTV backup power supply PK12V3AB
Product S/N:201110072
Specification:DC12V3A36W
Product Feature:supply DC12V3A current when AC power fails,support one 12V7AH battery
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

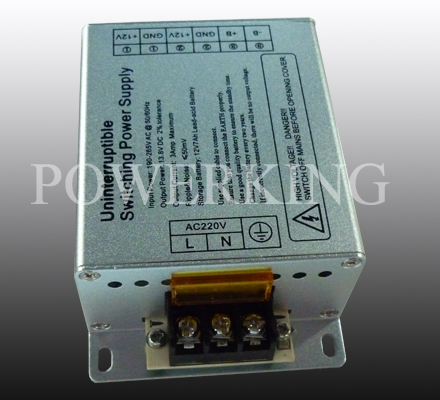

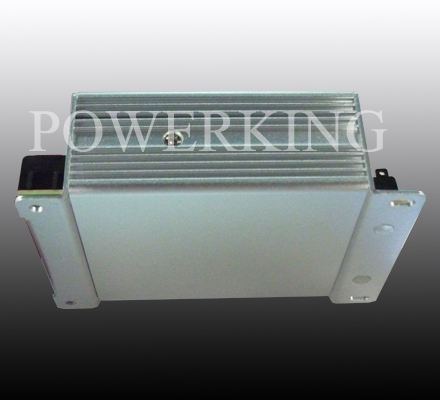

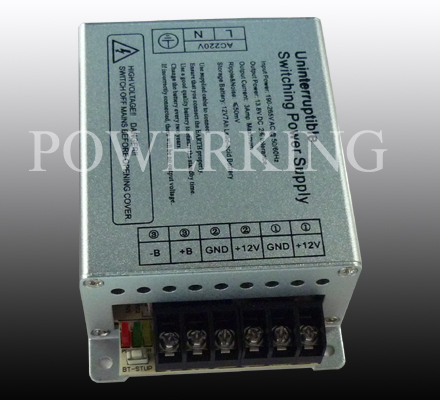

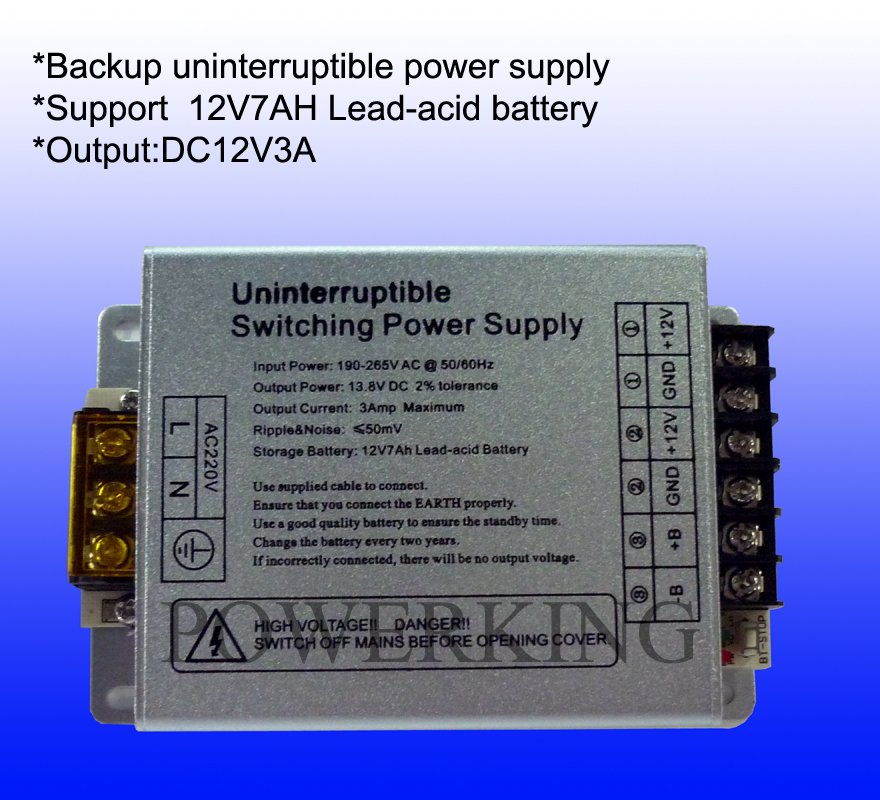

PK12V3AB is a CCTV unintterupt backup power supply,it can support 1 12V7AH battery.

Specifications:
  • Input 100~240VAC 50 / 60 Hz .
  • 3 amps (36W) supply current.
  • Output 12VDC.
  • Output current:3A
  • Output group:2 Channel
  • Main fuses are rated at 3 amps.
  • Recommended for 12V/7.0Ah battery charging, it need not be disconnected after charge.
  • AC power LED indicator.
  • overcurrent protection:3.6A
  • ripple:<=100mv
  • charge voltage:13.8V
  • charge current:1A
  • battery undervoltage protection:10V
  • Short protected outputs.
  • Surge protected outputs.
  • Over charge protected battery / Over discharge protected battery / Polarity in reverse protection
  • Enclosure dimensions(mm): 120H*80W*45D
  • Weight:0.4Kg

Easy  of installation saves time and eliminates costly labor.
