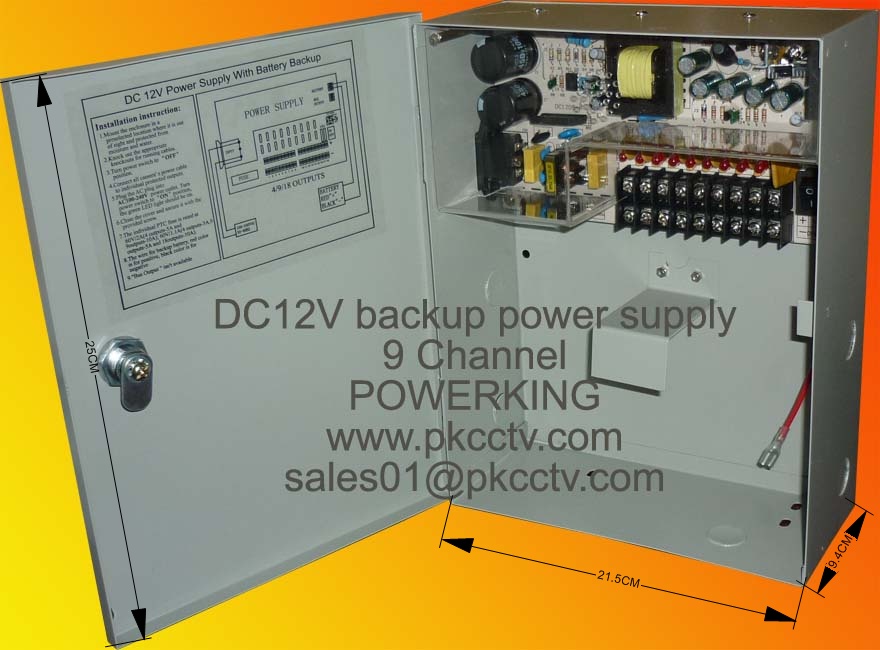

| |  | Product Name:CCTV backup power supply PKB1209-10A
Product S/N:5291220016
Specification:DC12V10A120W,9 channel
Product Feature:supply DC12V10A current when AC power fails,support one 12V7AH battery
Product Class:01.Power Supply
Quality Rank:
Chat with us:
Email:
|
|
 Product Description |
PKB1209-10A is a CCTV unintterupt backup power supply,it can support 1 12V7AH battery.
Specifications： |
- Input 100~240VAC 50 / 60 Hz .
- 10 amps (120W) supply current.
- Output 12VDC.
- Output current:10A
- Output group：9 Channel
- Fuset ype：PTC smart fuse
- Main fuses are rated at 10 amps.
- individual fuse rate:2A
- Recommended for 12V/7.0Ah battery charging, it need not be disconnected after charge.
- AC power LED indicator.
- Short protected outputs.
- Surge protected outputs.
- Over charge protected battery / Over discharge protected battery / Polarity in reverse protection
- Enclosure dimensions(mm): 250H*215W*94D
- Weight:2.05Kg
Ease of installation saves time and eliminates costly labor.
| |
|
|
