 01.Power Supply >> Backup Power supply >> CCTV unintterupt PKB1204-3A

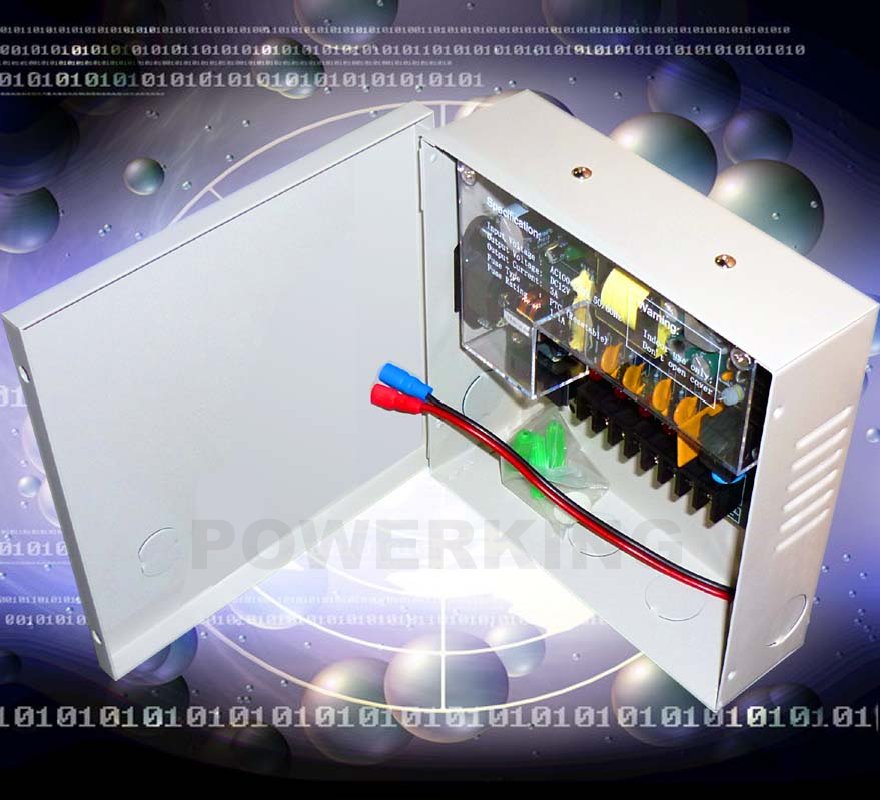

  CCTV unintterupt PKB1204-3A
Product Name:CCTV unintterupt PKB1204-3A
Product S/N:9151145491
Specification:DC12V3A36W 4 Channel
Product Feature:supply DC12V3A current when AC power fails,support one 12V7AH battery,CE&RoHS
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description
Specifications:
  • Input 100~240VAC 50 / 60 Hz .
  • 3 amps (36VA) supply current.
  • Output 12VDC.
  • Output group:4
  • Fuse type:PTC
  • Main fuses are rated at 1.1A for each channel.
  • Recommended for 12V/7.0Ah battery charging, it need not be disconnected after charge.
  • AC power LED indicator.
  • Short protected outputs.
  • Surge protected outputs.
  • Over charge protected battery / Over discharge protected battery / Polarity in reverse protection
  • Enclosure dimensions(mm): 170H*170W*60D
  • Weight:1.0Kg
Easy of installation saves time and eliminates costly labor.
